Rigging Accessories

Rigging accessories play a key role in the construction, logging, excavating, marine industry. We are a leading rigging hardware manufacturer in china, supplying a variety of high quality rigging hardware with different material options, including galvanized carbon steel, alloy steel, cast iron steel, and stainless steel hardware for marine uses.

We have been specialized in rigging hardware manufacturing for over 20 years, can supply a wide option of rigging accessories, includes clevis hook, rigging shackles, wire rope clips, wire rope thimbles, hoist hooks, and more.

If you have any Interested in wholesale rigging hardware, please contact us for more information, we help you and your business grow and succeed.

Request A Quote

Your Best Rigging Accessories Supplier

In the category of rigging accessories, Hilifting offers four basic types of shackles – screw pin anchor shackle, screw pin chain shackle, bolt type with safety pin anchor shackle and bolt type with safety pin chain shackle. Quality is our first priority…

Drop Forged Bolt Anchor Shackle G2130

Turnbuckles are paired with wire ropes, cable, etc. In our category of rigging accessories, Hilifting offers four basic types of turnbuckles – US type turnbuckle eye and eye, hook and eye, jaw and jaw, hook and hook. JIS type turnbuckle, Din1480 turnbuckle…

Drop Forged Hook And Hook Turnbuckle

Through our line of wire rope clips, Hilifting provides hot dipped galvanized drop forged wire rope clip, zinc plated malleable wire rope clip, duplex and simplex wire rope clips and stainless steel wire rope clips finishes to best suit your requirements…

Galvanized Drop Forged Wire Rope Clip G450

Hilifting eye bolts and nuts inventory includes zinc plated eye bolt and nut, hot dipped galvanized eye bolt and nut, and stainless steel eye bolts and nut. We stock a wide range of eye bolts and nuts, including long shank, swing gate, wood screw with lag thread…

Forged DIN580 Eye Bolt

Hilifting full range of wire rope thimbles offer protection to your steel wire rope and allow you to form a loop in the rope. Various types of wire rope thimbles are available including commercial standard thimble, British standard BS464 thimbles…

Forged Heavy Duty Thimble G414

Hooks are available with a variety of end connectors, including swivel eyes, chains, for fast and easy attachment to wire rope, or lifting slings. Models with and without latch kits are available. Hilifting has a huge range of hooks, including zinc plated hooks…

Carbon Steel Eye Hoist Hook H320

Hilifting offers two general styles of load binders, ratchet binder and lever binder. Ratchet load binder can be used to tighten cargos up and lock binders in place. While with lever type load binder, you can only tighten chains with fixed length. After being fastened…

Ratchet Type Load Binder 140

Hilifting has full lines of snap hooks and quick links including snap hook with eyelet, snap hook with nut, snap hook with eyelet and nut, etc. They are available from zinc plated, nickel plated steel and stainless steel, designed for…

Stainless Steel 316 Carabiner Snap Hook DIN5299 Form C

Hilifting Grade 8/80 Components product line mainly including Grade 8 sling hooks, master rings, connectors and swivels. Grade 8/80 Components are safety lifting chain slings fittings commonly used for lifting applications, painted red or yellow for easily…

G80 Welded Master Link Assembly

Grade 10/100 Components has higher load capacity than Grade 8/80 Components commonly at the same sizes, they can added benefits of increased toughness and longer service life. Hilifting Grade 10/100 Components including Grade 10/100 lifting hooks…

G80 Welded Master Link Assembly

Swivels are connections that allow chain or wire ropes to rotate horizontally or vertically. Eye and eye type is most commonly used regular swivel, besides it, we can manufacture jaw and eye swivel and swivel jaw end in material of carbon steels and…

Regular Swivel G402

Links and rings are one of the most of chains, wire ropes and webbing end fittings. Our links and rings are available in either a high polish zinc plated finish or a marine grade stainless steel finish, in a range of types including twin clevis link, double clevis link, missing link…

Twin Clevis Link For Chain S249

Ferrules and sleeves are available in varieties material. Aluminum is the most common and economical sleeve material, while stainless steel sleeves and copper sleeves are also available, including Us type hourglass aluminium ferrule, Din3039 aluminium wire rope ferrule…

Din 3093 aluminum cable ferrules

1. 3 basics symbol You Must Know on your lifting rigging hardware

Do you know random numbers or symbols on your lifting equipment? We’d like to reveal 3 “basic” customers MUST be aware of when using rigging hardware, chain, and lifting slings.

  • What Does Working Load Limit Mean?

Working load limit is also known as safety working load, abbreviated as W.L.L, it is the maximum safe working load that a piece of lifting equipment, without fear of breaking. It usually varies based on what type of rigging or safety equipment and are identified by manufacturers.

Working Load Limit (WLL)

  • Minimum Breaking Strength

The minimum break strength aka Minimum Breaking Load (MBL) refers to the required force at which your load equipment will fail. It is expressed in pounds, and/or tonnes, and will actually fail if you go over the guaranteed strength.

Minimum Breaking Strength(MBS)

  • Safety Factor

The safety factor is the ratio between the minimum breaking strength and the working load limit.
It is a calculation of the Minimum Breaking Strength (MBS) aka Minimum Breaking Load (MBL) divided by Working Load Limit (WLL)

As such:

SF = MBL / WLL

So if a shackle has a WLL of 1 ton, would have a SWL or MBS of 4 tons if a safety factor of 4 (4:1, 4 to 1, or 1/4) is used, usually the safety factor ranging from 4 to 6 on lifting equipment.

Safety Factor(S.F)

2. 3 Common Types Of Steel Materials In The Rigging Industry

There are many different types of steel materials used in rigging supplies and rigging hardware, while there are three commonly known forms of steel materials seen in the rigging industry alone: carbon steel, alloy steel, and stainless steel.

  • What is carbon steel?

Carbon steel is the most widely produced steel in the world, characterized by high carbon content, usually, any steel with carbon content from about 0.05% up to 2.1% by weight can be defined of carbon steel, stated from the American Iron and Steel Institute (AISI), it is the most common type of steel by far and not just in the rigging hardware products.

Carbon steel for rigging accessories

  • How many types of carbon steel:

1. Low-carbon steel
0.05 to 0.25% carbon (plain carbon steel) content.

2. Medium-carbon steel
Approximately 0.3–0.6% carbon content.Balances ductility and strength and has good wear resistance; used for large parts, forging and automotive components, commonly most of the drop forged shackles, turnbuckles, or any other need heat treatment rigging items are made in Medium carbon steel (C1045). You can click this link to check our rigging items.

3. High-carbon steel
Approximately 0.26 to 1.00% carbon content. Very strong, used for springs, edged tools, and high-strength wires

4. Ultra-high-carbon steel
Approximately 1.25–2.0% carbon content. Steels that can be tempered to great hardness. Used for special purposes like (non-industrial-purpose) knives, axles or punches. Most steels with more than 2.5% carbon content are made using powder metallurgy.

In the rigging industry, the most commonly produced type of carbon steel is low carbon steel and medium carbon steel, because they can be formed very easily due to the right wt% C, and after heat treating(Quenched & Tempered), their mechanical properties will be changed to ductility, hardness, yield strength, or impact resistance.

  • What is alloy steel?

Alloy steel is steel that is alloyed with a variety of elements to improve its mechanical properties. Most commonly, all steel is an alloy, including carbon steel, while in the rigging industry field, the phrase “alloy steel” refers to a very specific type of carbon steel, combined with the element, manganese, chromium, or both, this increased strength and to help fight the brittleness that many types of untreated steel display, especially after the heat treatment. It is used in our Grade 8/80 & Grade 10/100 Components.

Alloy steel for G80 products

  • What is stainless steel?

Stainless steel also known as inox steel (meaning inoxidizable from the French word inoxydable), is actually a type of alloy steel mixed with a minimum of approximately 11% chromium, nickel, molybdenum, and extremely low carbon as one of its elements. The other alloying elements may vary according to the structural and chemical properties required for the stainless steel.

One of the major positives of stainless steel is that it never easily corrodes due to the presence of chromium, which prevents the steel from rusting.

It is used in a wide range of applications from automobiles to shipping components and consumer products to bulk material and handling equipment. There are a number of standard alloys of stainless steel.

Specific types of stainless steel are often designated by a three-digit number in the rigging industry, commonly there are two types of stainless steel used for rigging, 304 stainless and 316 stainless steel, the 304 stainless steel is better and more expensive than 316 stainless steel for it adds molybdenum, which has excellent resistance to pitting corrosion, while the 316 marine grade stainless steel hardware is the preferred choice for coastal areas or when saltwater is involved.

Stainless steel for stainless steel hardware

  • What’s the difference between carbon steel, alloy steel and stainless steel?

Stainless steel has a high chromium content, the chromium can be exposed to oxygen without developing rust or corrosion, making a protective layer of chromium that creates a barrier between environmental oxygen and the metal’s iron content.

Normally, when carbon steel is exposed to moisture, it undergoes a chemical transformation, known as oxidation, that changes their properties, although stronger and more durable, if there is no additional protection against rust on the surface, such as hot dipped galvanized, zinc plated or painted.

Carbon steel and alloy steel are stronger and harder than stainless steel for high carbon content changes the characteristics of steel, whereas alloy steel is the strongest of the three, for its includes element, manganese, chromium, modify the properties of the metal, especially after the Quanched and Tempered, and it can resistant to rust and corrosion without galvanization.

Although carbon steel lacks the corrosion-resistant properties of its stainless steel counterpart, and not stronger and harder than alloy steel, it is less expensive and can create a wide range of steel alloy specific applications by adding the element combinations.

3. Surface Finish: 4 Common Types You Should Know

You may find many types of surface finishing in your rigging items, hot dipped galvanized shackles, painted hoist hooks, or zinc plated chains. Surface finishing is essential for the practical use of steel. When left unprotected, the steel will react with oxygen to form rust. This means that colorful exteriors aren’t just decorative—they are functional barriers that prevent corrosion.

Here in this article, we will help you understand the common types of surface finishing used in rigging industry.

  • Hot dipped galvanized

Hot dipped galvanized is a form of galvanization, it is the most common form of surface finishing on the rigging items, with a rough look, not very smooth and precise, although it is considered superior in terms of cost compared with stainless steel, and can protect the carbon steel underneath from further corrosion in many circumstances, but don’t last a very long time in salt water, it is usually used for the safety factor 6 times W.L.L forged shackles.

Hot dipped galvanized shackle

  • Zinc-coated

Zinc-coated, also called zinc-plated, galvanised, or electro galvanized,  It is another way applying a protective zinc coating to steel or iron, to prevent rusting, but this is a more controlled process that allows for a much smoother and looks better than hot dipped galvanized, but the zinc plated doesn’t last as long compared to being hot dipped galvanized.

Zinc-coated shackle

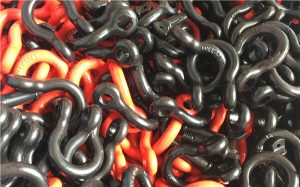

  • Painted coated

Painted steel is commonly layered with rust resistant paint to the self-colored steel with a painted gun, once the painted coating reaches the desired thickness, the rigging items are placed in a curing oven, the curing creates thermal bonds between paint particles, resulting in a smooth, beautiful and hard finish, please find the common painted coated rigging hooks for your understanding.

Painted coated shackle

  • Self-colored

Self colored refers to a plain carbon steel that has a very thin coating of protectant applied at a factory, we usually add the rust resistant oil on the self colored rigging items surface.

Hope you have known the common surface finishing types and understood the differences between them. Let us know if you need any of the rigging hardware products we offer, we can take your business to the next level.

Self-colored shackle

If you want to get more useful knowledge about the surface finish of rigging items, you can contact us by email at [email protected]. We will be glad to share with you more useful information.
