Project Description

Steel Wire Rope Sling

  • Material: carbon steel and high tensile steel
  • Safety Factor: 5:1

Hilifting is a professional wire rope sling supplier, for more wire ropes or wire rope end fittings, please check our website for steel wire rope, wire rope clips, thimbles, ferrules, and G80 components, etc to help you choose the fittings suitable for your wire rope slings.

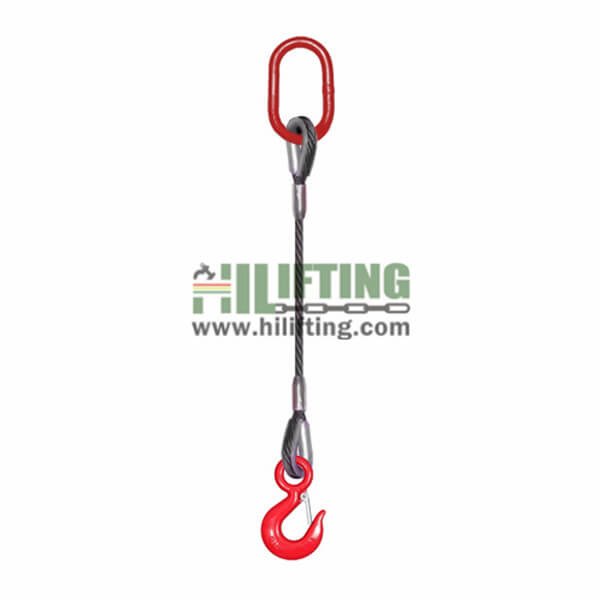

Single Leg Wire Rope Sling

Single Leg Wire Rope Sling Capacity Chart:

Rope diameter Capacity in different shape (SWL / WLL)
Vertical Choker Basket
mm Inch Ton Ton Ton
100% 80% 200%
6 1/4 0.5 0.4 1
8 5/16 0.82 0.656 1.64
9 3/8 1 0.8 2
10 1.3 1.04 2.6
11 1.5 1.2 3
12 15/32 1.8 1.6 3.6
13 1/2 2.1 1.68 4.2
14 35/64 2.5 2 5
16 5/8 3.3 2.64 6.6
18 45/64 4.1 3.28 8.2
19 3/4 4.6 3.68 9.2
20 25/32 5.1 4.08 10.2
22 7/8 6.2 4.96 12.4
24 15/16 7.4 5.92 14.8
26 1 8.6 6.88 17.2
28 1-1/8 10 8 20
32 1-1/4 13.1 10.48 26.2
36 1-3/8 16.6 13.28 33.2
38 18.5 14.8 37
40 1-7/12 20.6 16.48 41.2
42 1-5/8 22.6 18.08 45.2
44 1-3/4 24.8 19.84 49.6
48 1-7/8 29.5 23.6 59
52 2 34.8 27.84 69.9
56 2-1/4 40.2 32.16 80.4
60 2-23/64 46.2 36.96 92.4
64 2-1/2 54.8 43.84 109.6
71 2-13/16 66.6 53.28 133.2
76 3 76.5 61.2 153
83 3-1/4 89.6 71.68 179.2
89 3-1/2 101 80.8 202
103 4 129 103.2 258

Single Leg Wire Rope Sling

  • Type: Single leg wire rope sling thimble eye, master link & eye hook
  • Wire Rope Size: From 6mm to 103mm (1/4″~4″)
  • Construction: 6X36, 6X37, 8X19, 7X19, 6X19, 6X25 etc.
  • End Fittings: Shackles, hooks, clamps, thimble eyes, flemish soft eyes, etc
  • Safety Factor: 5:1
  • HS Code: 73129000
  • Applications: Oil, Gas, Mining, etc
Request A Quote

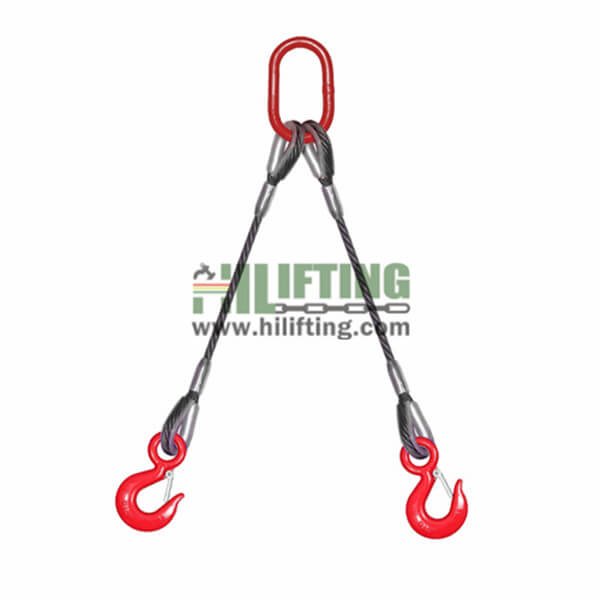

Double Leg Wire Rope Sling

Double Leg Wire Rope Slings Capacity Charts Metric Tons:

Rope diameter Capacity in different shape (SWL / WLL)
0-45 Degree Over 45-60 Degree
mm Inch Ton Ton
6 1/4 0.7 0.5
8 5/16 1.15 0.82
9 3/8 1.4 1
10 1.8 1.3
11 2.1 1.5
12 15/32 2.5 1.8
13 1/2 2.9 2.1
14 35/64 3.5 2.5
16 5/8 4.6 3.3
18 45/64 5.7 4.1
19 3/4 6.4 4.6
20 25/32 7.1 5.1
22 7/8 8.7 6.2
24 15/16 10.3 7.4
26 1 12 8.6
28 1-1/8 14 10
32 1-1/4 18.3 13.1
36 1-3/8 23.2 16.6.
38 25.9 18.5
40 1-7/12 28.8 20.6
42 1-5/8 31.6 22.6
44 1-3/4 34.7 24.8
48 1-7/8 41.4 29.5
52 2 48.7 34.8
56 2-1/4 56.3 40.2
60 2-23/64 64.7 46.2
64 2-1/2 76.7 54.8
71 2-13/16 93.2 66.6
76 3 107.1 76.5
83 3-1/4 125.5 89.6
89 3-1/2 141.4 101
103 4 180.6 129

Double Leg Wire Rope Sling

  • Type: Single leg wire rope sling thimble eye, master link & eye hook
  • Wire Rope Size: From 6mm to 103mm (1/4″~4″)
  • Construction: 6X36, 6X37, 8X19, 7X19, 6X19, 6X25 etc.
  • End Fittings: Shackles, hooks, clamps, thimble eyes, flemish soft eyes, etc
  • Safety Factor: 5:1
  • HS Code: 73129000
  • Applications: Oil, Gas, Mining, etc
Request A Quote

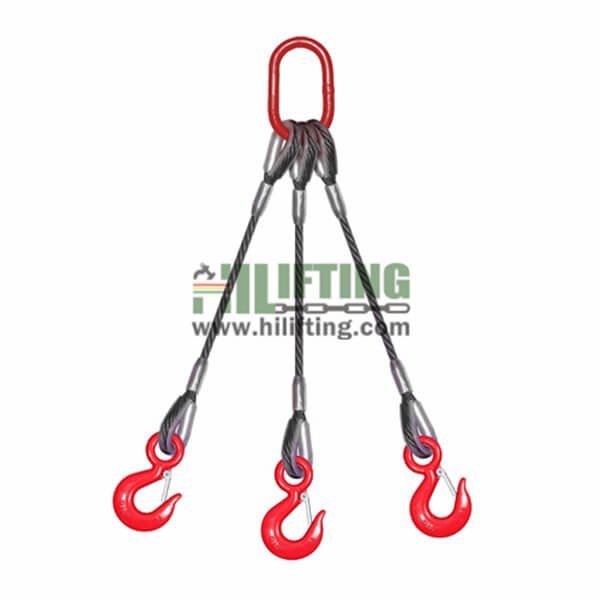

3 Leg Wire Rope Sling

3 Leg Wire Rope Sling SWL Charts Metric Tons:

Rope diameter Capacity in different shape (SWL / WLL)
0-45 Degree Over 45-60 Degree
mm Inch Ton Ton
6 1/4 1 0.75
8 5/16 1.7 1.2
9 3/8 2.1 1.5
10 2.73 1.95
11 3.15 2.25
12 15/32 3.8 2.7
13 1/2 4.4 3.15
14 35/64 5.25 3.75
16 5/8 6.9 4.95
18 45/64 8.6 6.15
19 3/4 9.65 6.9
20 25/32 10.7 7.65
22 7/8 13 9.3
24 15/16 15.5 11.1
26 1 18.05 12.9
28 1-1/8 21 15
32 1-1/4 27.5 19.65
36 1-3/8 34.85 24.9
38 38.85 27.75
40 1-7/12 43.25 30.9
42 1-5/8 47.45 33.9
44 1-3/4 52.1 37.2
48 1-7/8 61.95 44.25
52 2 73.1 52.2
56 2-1/4 84.4 60.3
60 2-23/64 97 69.3
64 2-1/2 115.1 82.2
71 2-13/16 139.85 99.9
76 3 160.65 114.75
83 3-1/4 188.2 134.46
89 3-1/2 212.1 151.5
103 4 270.9 193.5

3 Leg Wire Rope Sling

  • Type: Single leg wire rope sling thimble eye, master link & eye hook
  • Wire Rope Size: From 6mm to 103mm (1/4″~4″)
  • Construction: 6X36, 6X37, 8X19, 7X19, 6X19, 6X25 etc.
  • End Fittings: Shackles, hooks, clamps, thimble eyes, flemish soft eyes, etc
  • Safety Factor: 5:1
  • HS Code: 73129000
  • Applications: Oil, Gas, Mining, etc
Request A Quote

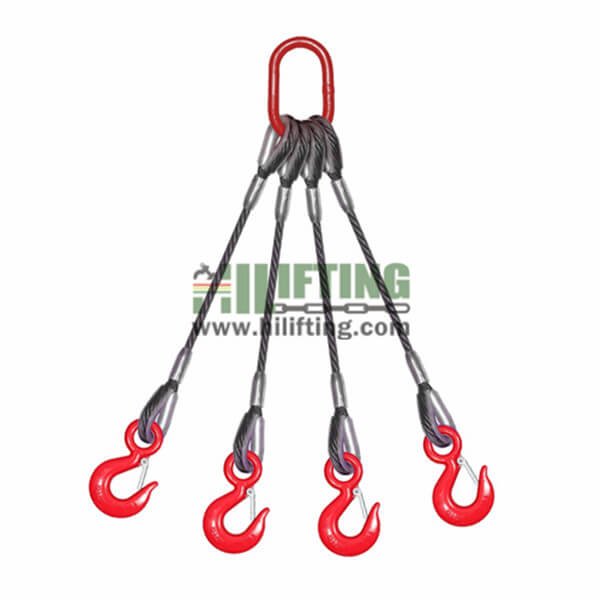

Wire Rope 4 Leg Bridle Slings

4 Leg Wire Rope Sling Capacity Chart Metric Tons:

Rope diameter Capacity in different shape (SWL / WLL)
0-45 Degree Over 45-60 Degree
mm Inch Ton Ton
6 1/4 1 0.75
8 5/16 1.7 1.2
9 3/8 2.1 1.5
10 2.73 1.95
11 3.15 2.25
12 15/32 3.8 2.7
13 1/2 4.4 3.15
14 35/64 5.25 3.75
16 5/8 6.9 4.95
18 45/64 8.6 6.15
19 3/4 9.65 6.9
20 25/32 10.7 7.65
22 7/8 13 9.3
24 15/16 15.5 11.1
26 1 18.05 12.9
28 1-1/8 21 15
32 1-1/4 27.5 19.65
36 1-3/8 34.85 24.9
38 38.85 27.75
40 1-7/12 43.25 30.9
42 1-5/8 47.45 33.9
44 1-3/4 52.1 37.2
48 1-7/8 61.95 44.25
52 2 73.1 52.2
56 2-1/4 84.4 60.3
60 2-23/64 97 69.3
64 2-1/2 115.1 82.2
71 2-13/16 139.85 99.9
76 3 160.65 114.75
83 3-1/4 188.2 134.46
89 3-1/2 212.1 151.5
103 4 270.9 193.5

Wire Rope 4 Leg Bridle Slings

  • Type: Single leg wire rope sling thimble eye, master link & eye hook
  • Wire Rope Size: From 6mm to 103mm (1/4″~4″)
  • Construction: 6X36, 6X37, 8X19, 7X19, 6X19, 6X25 etc.
  • End Fittings: Shackles, hooks, clamps, thimble eyes, flemish soft eyes, etc
  • Safety Factor: 5:1
  • HS Code: 73129000
  • Applications: Oil, Gas, Mining, etc
